Software Quality Engineering

Chapter 1 - Software Quality Fundamentals

Created by Dani Budinova-Spahieva, d.budinova@gmail.com

Press ESC to enter the slide overview.
Use the Space key to navigate through all slides.
Presentations look great on touch devices, like mobile phones and tablets. Simply swipe through your slides.

1.1 Software Engineering Culture and Ethics

The culture of an organization is a critical success factor in its process improvement efforts. "Culture" includes a set of shared values and principles that guide the behaviors, activities, priorities, and decisions of a group of people working in the same area. When coworkers align along common beliefs, it is easier to induce changes that will increase the group's effectiveness and its probability of survival. A shared culture is one difference between a "team" and a "bunch of bozos on a bus".

Customer involvement is the most critical factor in software quality.

Any successful enterprise requires that you both do the right thing, and do the thing right. We expect that professional software developers know how to do the "thing" right. Doing the right thing, though, requires an unambiguous understanding of what your customer expects. To this end, we strive to maximize participation of our customers in our development activities.

Sharing the vision of the final product with the customer

The classic failure of software development is that the product delivered only vaguely matches the expectations of the customer. Every project, even small ones developing internally reusable software components, goes through a formal, written requirements specification process If you don't have time to do it right, when will you have time to do it over?

Quality is the top priority; long-term productivity is a natural consequence of high quality

Ongoing education is every team member's responsibility.

Have a peer, rather than a customer, find a defect.

Written software development procedures can help improve quality.

Continual improvement of your software development process is both possible and essential.

Never let your boss or your customer talk you into doing a bad job.

People need to feel that the work they do is noticed.

Summary

You can't buy a culture in shrink-wrap; you must roll your own. Every software team works in a different context of expectations, pressures, application domains, and technolo- gies. The process of agreeing upon principles and values provides many opportunities for improving both the work environment and the work results. A shared culture is essential to progress through the software process maturity sequence to the discipline of repeatable and measurable software development processes.

Value and Cost of Quality (COQ)

Associated with providing poor quality products or services. Categories:

• internal failure costs

  associated with defects found before the customer receives the product or service

• external failure costs

  associated with defects found after the customer receives the product or service

• appraisal costs

  incurred to determine the degree of conformance to quality requirements

• prevention costs

  incurred to keep failure and appraisal costs to a minimum.

Cost of quality

is a methodology that allows an organization to determine the extent to which its resources are used for activities that prevent poor quality, that appraise the quality of the organization's products or services, and that result from internal and external failures. Having such information allows an organization to determine the potential savings to be gained by implementing process improvements.

Quality-related activities that incur costs may be divided into:

• prevention costs

• appraisal costs

• internal costs

• external costs

Prevention costs

Incurred to prevent or avoid quality problems. Associated with the design, implementation, and maintenance of the quality management system. Planned and incurred before actual operation, and they could include:

• Product or service requirements

  establishment of specifications for incoming materials, processes, finished products, and services

• Quality planning

  creation of plans for quality, reliability, operations, production, and inspection

• Quality assurance

  creation and maintenance of the quality system

• Training

  development, preparation, and maintenance of programs

Appraisal costs

Associated with measuring and monitoring activities related to quality. These costs are associated with the suppliers' and customers' evaluation of purchased materials, processes, products, and services to ensure that they conform to specifications. They could include:

• Verification

  checking of incoming material, process setup, and products against agreed specifications

• Quality audits

  confirmation that the quality system is functioning correctly

• Supplier rating

  assessment and approval of suppliers of products and services

Internal failure costs

Incurred to remedy defects discovered before the product or service is delivered to the customer. These costs occur when the results of work fail to reach design quality standards and are detected before they are transferred to the customer. They could include:

• Waste

  performance of unnecessary work or holding of stock as a result of errors, poor organization, or communication

• Rework

• Failure analysis

External failure costs

Incurred to remedy defects discovered by customers. These costs occur when products or services that fail to reach design quality standards are not detected until after transfer to the customer. They could include:

• Repairs and servicing

• Warranty claims

• Complaints

  all work and costs associated with handling and servicing customers' complaints

Cost of quality and organizational objectives

The costs of doing a quality job, conducting quality improvements, and achieving goals must be carefully managed so that the long-term effect of quality on the organization is a desirable one. The quality cost system, once established, should become dynamic and have a positive impact on the achievement of the organization's mission, goals, and objectives.

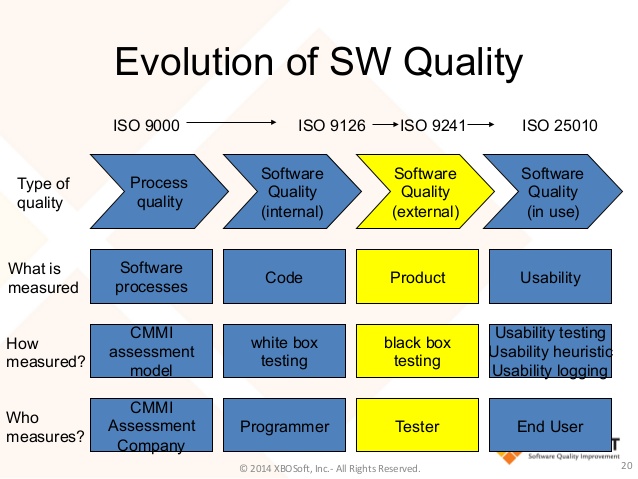

Models and Quality Characteristics

The official ISO 9126 documentation software quality model identifies 6 main quality characteristics, namely:

• Functionality

  The software system is functioning, as specified,

• Reliability

  the capability of the system to maintain its service provision under defined conditions for defined periods of time. (fault tolerance - the ability of a system to withstand component failure)

Models and Quality Characteristics - part 2

• Usability

  exists with regard to functionality and refers to the ease of use for a given function. learnability is also a major subcharacteristic of usability.

• Efficiency

  concerned with the system resources used when providing the required functionality.

• Maintainability

  ability to identify and fix a fault within a software component; testability, readability, modularization

• Portability

  how well the software can adopt to changes in its environment or with its requirements

Functionality

• Suitability

  appropriateness of the functions of the software.

• Accurateness

  correctness of the functions

• Interoperability

  the ability of a software component to interact with other components or systems.

• Compliance

  Where appropriate certain industry (or government) laws and guidelines need to be complied with

• Security

  unauthorized access to the software functions

Reliability

• Maturity

  frequency of failure of the software.

• Fault tolerance

  The ability of software to withstand (and recover) from component, or environmental, failure

• Recoverability

  Ability to bring back a failed system to full operation, including data and network connections.

Usability

Efficiency

Maintainability

Portability

Software Development Models

Testing does not exist in isolation, test activities are related to software development activities. Different development life cycle models need different approaches to testing. There are various Software development models or methodologies. http://istqbexamcertification.com/what-are-the-software-development-models/

Software Development Models:

• Waterfall model

• V model

• Incremental model

• RAD model

• Agile model

• Iterative model

• Spiral model

• Prototype model

Software Quality Improvement

Software underpins nearly every business process. Therefore it's essential to lower the cost of testing and improve the quality of your software. These four pointers will help you improve software quality and improve testing efficiency.

Test at the right time

By testing earlier you will be able to detect and solve defects rather than having to resolve them at the end of the process. The later software bugs are detected, the longer and more expensive they are to resolve. Fixing bugs early can be a game-changer. The firm cut development time by 25 percent and bug fixing costs by 31 percent. Get testers involved during the requirements and design stage so they can help formulate a more effective test framework. More than 70 percent of software issues in a live environment can be traced back to poor requirements. Implement Static testing early in the life cycle to give immediate reactions on quality issues regarding your software development.

Improve testing organisation

Be professional in your testing or risk harming your business. Implement specific policies to direct a consistent approach like using repeatable industry standard testing processes and training testers within this framework. Remember: Use metrics. This helps keep track of where you are ensuring that you don't start before you're ready, and you finish when you're done to prevent wasted bandwidth.

Innovation leads to improvement

Write automated tests wherever possible to make your testing process more efficient. Make sure that your testing is targeted too. By using test design techniques and risk-based testing you can make sure that you will be using fewer, but more worthwhile tests.

Keep reviewing

You can have too much of a good thing. Just because certain methods have worked in the past doesn't mean they always will. Processes of evaluation and refactoring allow your testing team to maximise efficiency by reviewing what worked well. Implement a Root cause analysis process which distinguishes whether issues were a 'testing miss', a 'development miss' or a 'requirements or design miss'. This will help to identify areas for improvement throughout the whole software development process.

Software system safety

In software engineering, software system safety optimizes system safety in the design, development, use, and maintenance of software systems and their integration with safety-critical hardware systems in an operational environment. There are three major types of software failure. Not all of these can be rectified by the programmers. The three types are:

• Software logic errors,

• Software support errors,

• Hardware failures

Techniques

• During preliminary design

• During Analysis/Requirements

• During the Software Design phase

• During the late design and coding phase

• Software verification and testing

Chapter 2 - Software Quality Management Processes

• 2.1 Software Quality Assurance

• 2.2 Verification & Validation

• 2.3.Reviews and Audits

• 2.3.1 Management Reviews

• 2.3.2 Technical Reviews

• 2.3.3 Inspections

• 2.3.4 Walkthroughs

• 2.3.5 Process Assurance and Product Assurance Audits

2.1 Software Quality Assurance

This chapter describes ways to organize test teams, which qualifications are important, the tasks of a test manager, and which supporting processes must be present for efficient testing.

2.1.1 Test Organization

pro:

cons:

Models of independent testing

Hint

2.1.2 Tasks and Qualifications

2.2 Test Planning

2.2.1 Quality Assurance Plan - IEEE 730-2002

2.2.1 Quality Assurance Plan - IEEE 730-2002 part 2

2.2.2 Test Plan

Test Plan according to IEEE 829-1998

Test Plan according to IEEE 829-1998 part 2

2.2.3 Prioritizing Tests

2.2.4 Test Entry and Exit Criteria /when testing can be started and stopped/

preconditions for starting test execution

2.2.4 Test Entry and Exit Criteria /Test manager/

stop test execution

2.3 Cost and Economy Aspects

2.4 Choosing the Test Strategy and Test Approach

A test strategy or approach defines the project's testing objectives and the means to achieve them. It therefore determines testing effort and costs.

2.5 Managing The Test Work

2.6 Incident Management

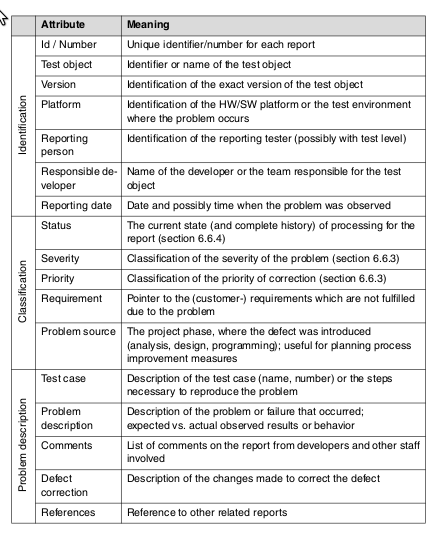

2.6.2 Incident Report template

2.6.3 Defect Classification

2.6.3 Defect Classification

Incident Report template

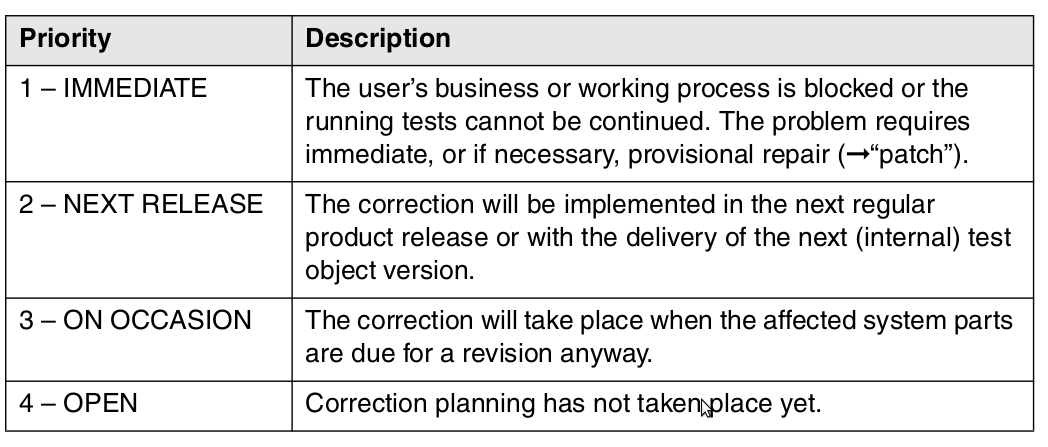

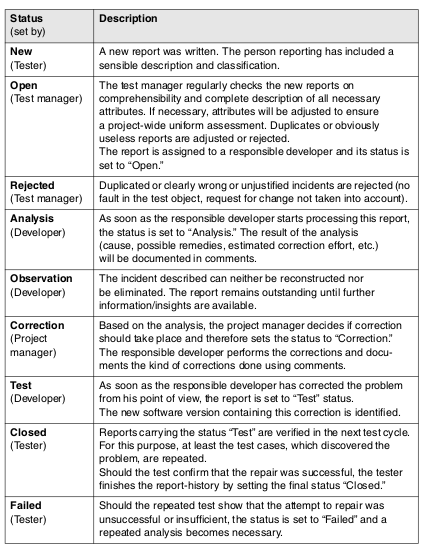

2.6.4 Incident status

2.6.4 Incident status - change control board, usually consists of representatives from the following stakeholders: product management, project management, test management, and the customer.

2.7 Requirements to Configuration Management

2.8 Relevant Standards

2.9 Verification & Validation

Within each test level, the tester must make sure the outcomes of development meet the requirements that are relevant or specified on this specific level of abstraction. This process of checking the development results according to their original requirements is called validation.

2.9 Verification

Unlike validation, verification refers to only one single phase of the development process. Verification shall assure that the outcome of a particular development level has been achieved correctly and completely, according to its specification (the input documents for that development level).

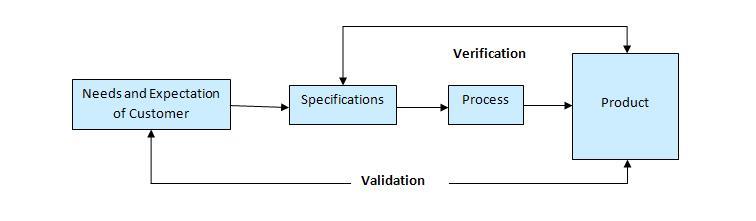

Verification vs Validation

2.10 Reviews and Audits

Types of Reviews

2.10 Reviews and Audits - part 2

2.10.1 Management/project Reviews [IEEE 1028]

2.10.2 Technical Reviews

Technical review procedure

2.10.3 Inspections

2.10.4 Walkthroughs

2.10.5 Process Assurance and Product Assurance Audits

3 Practical Considerations

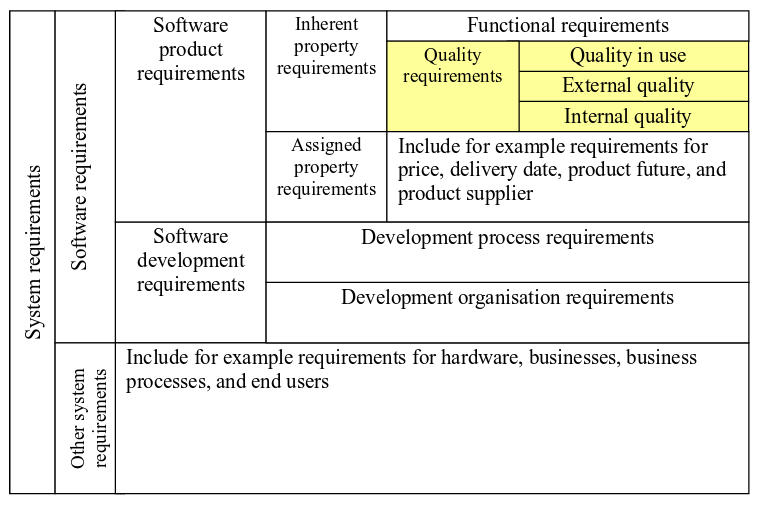

System requirements categorisation

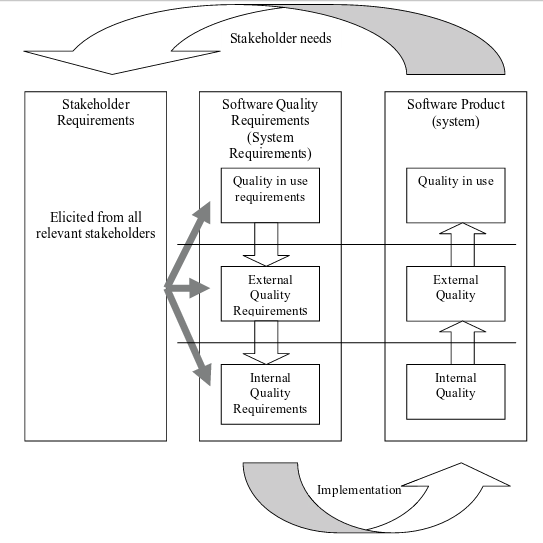

Quality requirements life cycle

3.1 Software Quality Requirements

3.1.1. Influence Factors

It looks like your project is off to a good start. The team got some customers involved in the requirements elicitation stage and you actually wrote a software requirements specification. The spec was kind of big, but the customers signed off on it so it must be okay. Now you are designing one of the features and you've found some problems with the requirements. You can interpret requirement 15 a couple of different ways. Requirement 9 states precisely the opposite of requirement 21; which should you believe? Requirement 24 is so vague that you haven't got a clue what it means. You just had an hour-long discussion with two other developers about requirement 30 because all three of you thought it meant something different. And the only customer who can clarify these points won't return your calls. You're forced to guess at what many of the requirements mean, and you can expect to do a lot of rework if you guess wrong.

3.1.1. Influence Factors - part 1

Many software requirements specifications (SRS) are filled with badly written requirements. Because the quality of any product depends on the quality of the raw materials fed into it, poor requirements cannot lead to excellent software. Sadly, few software developers have been educated about how to elicit, analyze, document, and verify the quality of requirements. There aren't many examples of good requirements available to learn from, partly because few projects have good ones to share, and partly because few companies are willing to place their product specifications in the public domain.

Don't expect to create an SRS in which every requirement exhibits all of these desired characteristics. No matter how much you scrub, analyze, review, and refine the requirements, they will never be perfect. However, if you keep these characteristics in mind, you will produce better requirements documents and you will build better products.

3.1.1 Influence Factors - part 2

3.1.2 Dependability

Dimensions of Dependability

Maintainability

Survivability

Dependability Costs

Availability and Reliability

Defect Characterization

3.3 Software Quality Management Techniques

3.3.1 Static Techniques

An often-underestimated examination method is the so-called static test /static analysis/. Opposite to dynamic testing (see chapter 3.3.2), the test object is not provided with test data and executed but rather analyzed. This can be done using one or more persons for an intensive investigation or through the use of tools. Such an investigation can be used for all documents relevant for software development and maintenance. The goal of examination is to find defects and deviations from the existing specifications, standards to comply with, or even the project plan.

3.3.1 Static Techniques - part 2

3.3.1.1 Structured Group Evaluations

Types of Reviews

3.3.1.2 Static Analysis - Analysis without executing the program, Formal documents

The following defects and dangerous constructions can be detected by static analysis:

Execution of Control Flow Analysis

Determining Metrics - Measuring of quality characteristics

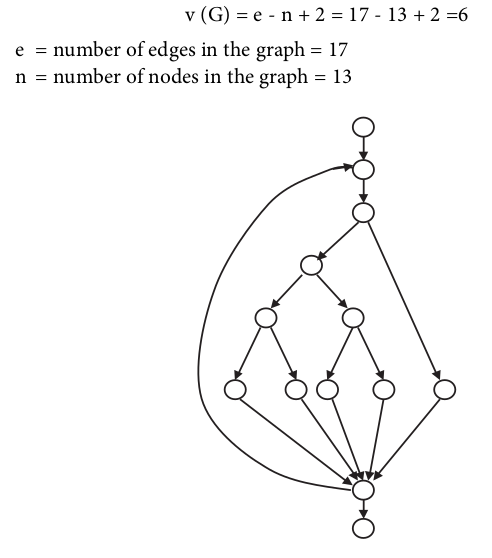

For a control flow graph (G) of a program or a program part, the cyclomatic number can be computed like this:

v(G) = e - n + 2

v(G) = cyclomatic number of the graph G

e= number of edges of the control flow graph

n= number of nodes of the control flow graph

Determining Metrics - cyclomatic number

The value of 6 is, according to McCabe, acceptable and in the middle of the range. He assumes that a value higher than 10 cannot be tolerated and rework of the program code has to take place.

The cyclomatic number gives information about the testing effort. The higher the value of the cyclomatic number, the more difficult it is to understand the flow in a certain program part.

Generally, static analyses should be performed first, before a document is subjected to review. Static analyses provide a relatively inexpensive.

3.3.1.3 Dinamic Analysis - testing software by executing the test objects on a computer.

The test object (program) is fed with input data and executed. The program must be executable. In the lower test stages (unit and integration testing), the test object cannot be run alone but must be embedded into a test harness or test bed to obtain an executable program

The test object will usually call different parts of the program through predefined interfaces. These parts of the program are represented by placeholders called stubs when they are not yet implemented and therefore aren't ready to be used or if they should be simulated for this particular test of the test object. Stubs simulate the input/output behavior of the part of the program that usually would be called by the test object.

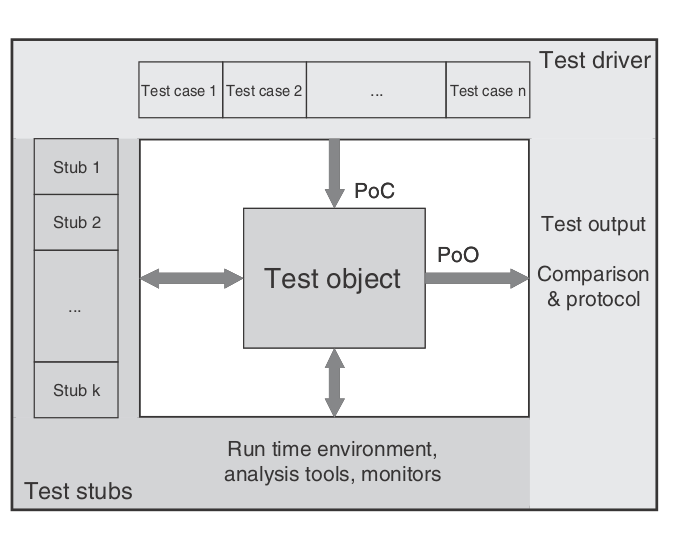

Test bed Point of Observation (PoO) and Point of Control (PoC)

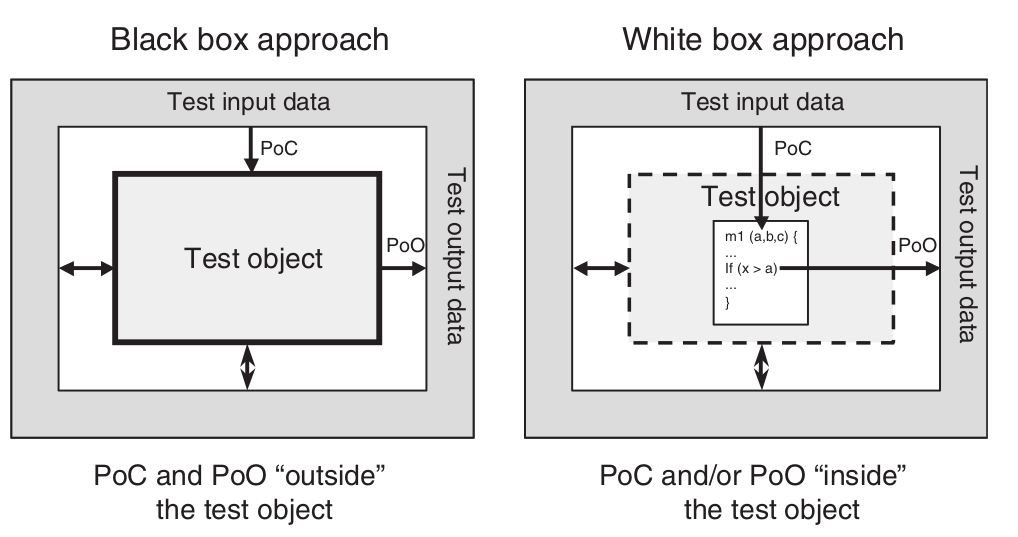

PoC and PoO at black box and white box techniques

White box testing is also called structural testing because it considers the structure (component hierarchy, control flow, data flow) of the test object. The black box testing techniques are also called functional, specification-based, or behavioral testing techniques because the observation of the input/output behavior is the main focus. The functionality of the test object is the center of attention.

Black box

Example for the calculation of the dealer discount - description of the requirements: 'For a sales price of less than $15,000, no discount shall be given. For a price up to $20,000, a 5% discount is given. Below $25,000, the discount is 7%, and from $25,000 onward, the discount is 8.5%.' Four different equivalence classes with correct input values (called valid equivalence classes, or vEC) can easily be derived for calculating the discount.

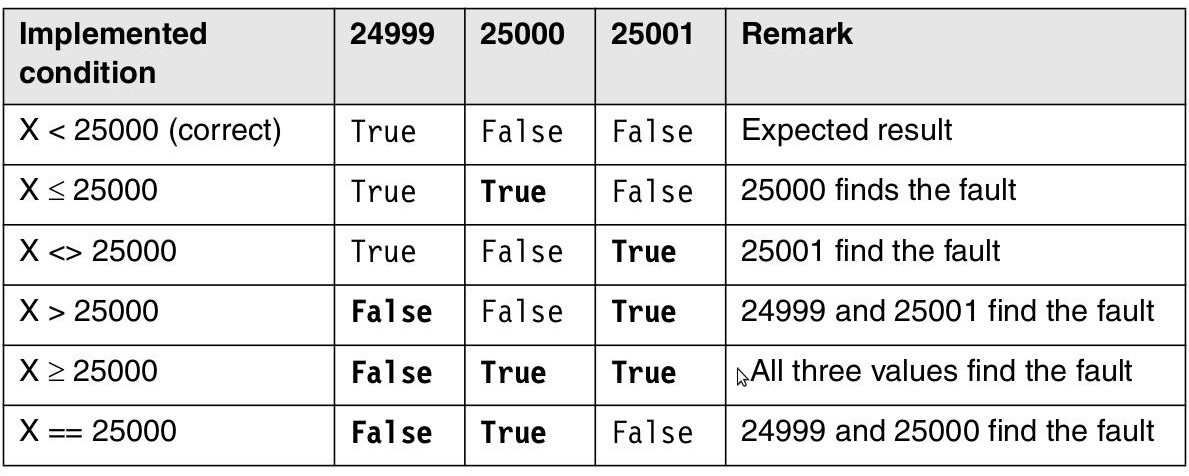

Boundary Value Analysis

Boundary value analysis checks the borders of the equivalence classes. On every border, the exact boundary value and both nearest adjacent values (inside and outside the equivalence class) are tested. The minimal possible increment in both directions should be used. For floating-point data, this can be the defined tolerance. Therefore, three test cases result from every boundary. If the upper boundary of one equivalence class equals the lower boundary of the adjacent equivalence class, then the respective test cases coincide as well.

Boundary Value Analysis

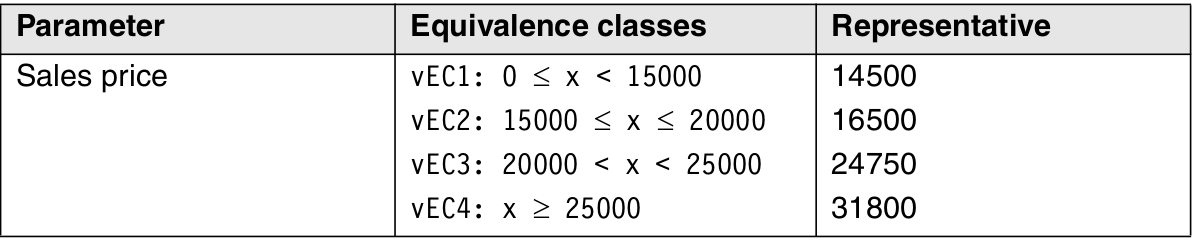

Invalid equivalence classes and representatives also needed.

State Transition Testing

In state transition testing, the test object can be a complete system with different system states as well as a class in an object-oriented system with different states. Whenever the input history leads to differing behavior, a state transition test must be applied.

Every state has been reached at least once.

Every transition has been executed at least once.

Every transition violating the specification has been checked.

Logic-Based Techniques (Cause-Effect Graphing and Decision Table Technique, Pairwise Testing)

The logical relationships between the causes and their effects in a component or a system are displayed in a so-called cause-effect graph.

Every cause is described as a condition that consists of input values (or combinations thereof). The conditions are connected with logical operators (e.g., AND, OR, NOT). The condition, and thus its cause, can be True or False

Effects are treated similarly and described in the graph.

Cause-Effect Graph for an ATM

Decision table

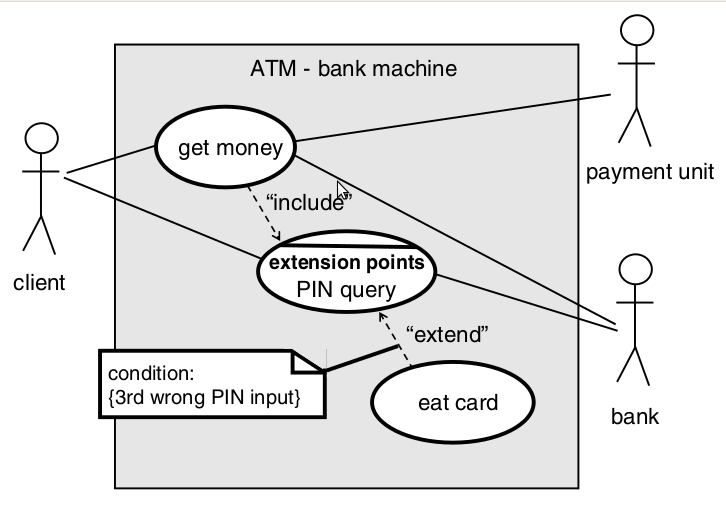

Use-Case-Based Testing - Unified Modeling Language (UML) and diagrams

General Discussion of the Black Box Technique

White Box Testing Techniques

Code-based testing techniques

All code should be executed

General Discussion of the White Box Technique

Intuitive and Experience-Based Test Case Determination

3.4 Software Quality Measurement

Pareto analysis

formal technique useful where many possible courses of action are competing for attention. In essence, the problem-solver estimates the benefit delivered by each action, then selects a number of the most effective actions that deliver a total benefit reasonably close to the maximal possible one

Run chart

A run chart is a graph of data, in chronological order, that displays changes and trends in the central tendency (average). Run charts can track events such as:
· Total failures
· Complaint levels
· End user satisfaction level
· Suggestion levels
· Training efforts
· Production yields
· Number of invoices
· Number of system errors
· Down time (minutes, percent)

Scatter Diagram /scatter plot, X-Y graph/

Scatter chart is commonly used to graph paired data such as scientific, statistical and engineering data. It has two value axes, showing one set of numerical data along the X-axis and another along the Y-axis. As the cursor moves, the X-axis and Y-axis value change real-time and automatically. Thus, users can gain higher precision in drawing.

4.1 Test management

• Tools for Management and Control of Testing and Tests - provide mechanisms for easy documentation, prioritization, listing, and maintenance of test cases.
  Requirements, Incident, Configuration management; Tool integration
• Tools for Test Specification - So-called test (data) generators can support the test designer in generating test data
  Database-based, Code-base, Interface-based, Specification-based
• Tools for Static Testing - executed on source code or on specifications before there are executable programs. Model checker, Static analysis, Tools for review support
• Tools for Dynamic Testing - Debuggers, Test drivers and test frameworks, Simulators, Test robots
• Tools for Nonfunctional Test - Load and performance test, Monitors, Testing of security, Data Quality Assessment

4.2 Selection and Introduction of Test Tools

A tool can never replace a nonexistent process or compensate for a sloppy procedure. “It is far better to improve the effectiveness of testing first than to improve the efficiency of poor testing. Automating chaos just gives faster chaos” - Fewster

1. Incident management
2. Configuration management
3. Test planning

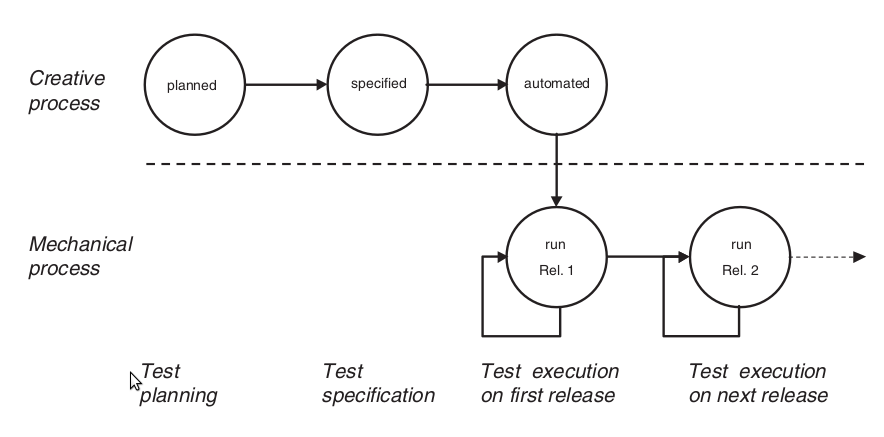

4. Test execution
5. Test specification

4.3 Cost Effectiveness of Tool Introduction

Make a cost-benefit analysis

Evaluate the influence on test quality

4.4 Tool Selection

1. Requirements specification for the tool
2. Market research (creating a list of possible candidates)
3. Tool demonstrations
4. Evaluation of the tools on the short list
5. Review of the results and selection of the tool

4.4 Tool Selection - Selection criteria

1. Quality of interaction with the potential test objects
2. Tester know-how regarding the tool or method
3. Possibility of integration into the existing development environment
4. Possibility of integration with other already used testing tools
5. Platform for using the tool
6. Possibilities for integration with tools from the same supplier
7. Manufacturer’s service, reliability, and market position
8. License conditions, price, maintenance costs

4.5 Tool Introduction

• Pilot operation - Coaching and training measures are important
• Success factors
  1. Introduce the tool stepwise.
  2. Integrate the tool's support with the processes.
  3. Implement user training and continuous coaching
  4. Make available rules and suggestions for applying the tool.
  5. Collect usage experiences and make them available to all users (hints, tricks, FAQs, etc.).
  6. Monitor tool acceptance and gather and evaluate cost-benefit data.

4.5 Tool Introduction - follows these six steps:

1. Execute a pilot project.
2. Evaluate the pilot project experiences.
3. Adapt the processes and implement rules for usage.
4. Train the users.
5. Introduce the tool stepwise.
6. Offer coaching.

4.6 Summary

• Tools are available for every phase of the test process, helping the tester automate test activities or improve the quality of these activities.
• Use of a test tool is beneficial only when the test process is defined and controlled.
• Test tool selection must be a careful and well-managed process because introducing a test tool may incur large investments.
• Information, training, and coaching must support the introduction of the selected tool. This helps to assure the future users' acceptance and hence the continued application of the tool.

References

SYSTEM SAFETY EVALUATION PROGRA, SYSTEM SAFETY EVALUATION PROGRAM

Software Safety, NASA Technical Standard, (1997)

Failure mode and effects analysis

Goddard, Peter. Software FMEA Techniques, 2000

Test pages

SQL Injection.html

SQL Injection-good.html

Cross-Site Scripting (safe XSS).html

Cross-Site Scripting (XSS).html

SW Metrics

SW Metrics

Software Quality Metrics

Software Requirements Metrics

Software Design Metrics

Software Maintenance and Operation
